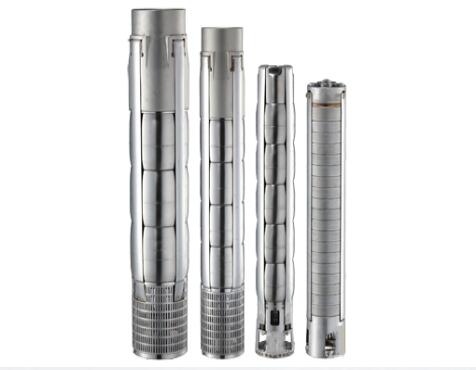

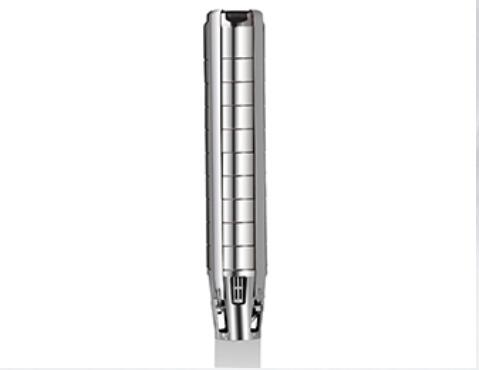

SP不銹鋼深井潛水泵

流量：2-240m3/h

壓力：5-205m

轉 速：2900r/min

配套電機：1.5-75KW

質量穩定交貨便捷專業定制

聯系電話13761801222

電話咨詢 查看詳情

產品介紹技術參數 結構安裝外形尺寸使用案例

產品介紹：

SP系列不銹鋼深井潛水泵是我廠研制生產的新型高檔節能產品，適用于深水井，熱水及海洋提取。

產品特點：

· 全不銹鋼材質結構無污染，抗腐蝕。內置全不銹鋼止回閥可有效防止回流水錘損壞水泵。

· 結構簡單、體積小、重量輕、安裝維修方便、運行安全、可靠、高效節能。

適用范圍：

廣泛用于河流、水庫、農田灌溉、工礦企業的供排水和高原、山區的人、畜用水。亦可供景觀噴泉、城市、工廠、鐵路、礦山、工地供排水使用。

性能參數

序號	規格型號	流量m³/揚程h			功率kw
1	4SP2-13A	1.5T/64	2T/52	2.5T/44	0.55
2	4SP2-18A	1.5T/89	2T/73	2.5T/66	0.75
3	4SP2-23A	1.5T/114	2T/92	2.5T/77	1.1
4	4SP2-28A	1.5T/139	2T/112	2.5T/94	1.5
5	4SP2-33A	1.5T/163	2T/132	2.5T/111	1.5
6	4SP2-40A	1.5T/198	2T/160	2.5T/135	2.2
7	4SP2-48A	1.5T/237	2T/192	2.5T/161	2.2
8	4SP2-55A	1.5T/272	2T/220	2.5T/185	3
9	4SP3-9A	2T/45	3T/38	4T/28	0.55
10	4SP3-12A	2T/60	3T/51	4T/37	0.75
11	4SP3-15A	2T/74	3T/64	4T/46	1.1
12	4SP3-18A	2T/89	3T/77	4T/56	1.1
13	4SP3-22A	2T/109	3T/94	4T/68	1.5
14	4SP3-25A	2T/124	3T/107	4T/78	1.5
15	4SP3-32A	2T/158	3T/137	4T/99	2.2
16	4SP3-39A	2T/193	3T/167	4T/121	3
17	4SP3-44A	2T/218	3T/188	4T/136	3
18	4SP3-52A	2T/257	3T/222	4T/161	4
19	4SP5-6A	3T/30	5T/24	6T/18	0.55
20	4SP5-8A	3T/40	5T/32	6T/24	0.75
21	4SP5-12A	3T/60	5T/48	6T/36	1.1
22	4SP5-17A	3T/85	5T/68	6T/51	1.5
23	4SP5-22A	3T/110	5T/88	6T/66	2.2
24	4SP5-25A	3T/125	5T/100	6T/75	2.2
25	4SP5-33A	3T/165	5T/132	6T/99	3
26	4SP5-38A	3T/190	5T/152	6T/114	4
27	4SP5-40A	3T/200	5T/160	6T/120	4
28	4SP5-44A	3T/220	5T/176	6T/132	4
29	4SP5-52A	3T/260	5T/208	6T/156	5.5
30	4SP8-5A	6T/25	8T/21	10T/15	0.75
31	4SP8-7A	6T/35	8T/30	10T/21	1.1
32	4SP8-10A	6T/50	8T/43	10T/30	1.5
33	4SP8-12A	6T/60	8T/51	10T/36	2.2
34	4SP8-14A	6T/70	8T/60	10T/42	2.2
35	4SP8-18A	6T/90	8T/77	10T/54	3
36	4SP8-21A	6T/105	8T/90	10T/63	4
37	4SP8-24A	6T/120	8T/103	10T/72	4
38	4SP8-30A	6T/150	8T/129	10T/90	5.5
39	4SP8-35A	6T/175	8T/150	10T/105	5.5
40	4SP8-40A	6T/200	8T/172	10T/120	7.5
41	4SP8-44A	6T/220	8T/189	10T/132	7.5
42	4SP14-3A	8T/17	14T/12	16T/10	0.75
43	4SP14-4A	8T/23	14T/16	16T/13	1.1
44	4SP14-5A	8T/29	14T/20	16T/16	1.5
45	4SP14-7A	8T/40	14T/28	16T/23	2.2
46	4SP14-10A	8T/57	14T/40	16T/32	3
47	4SP14-13A	8T/74	14T/52	16T/42	4
48	4SP14-15A	8T/85	14T/60	16T/48	5.5
49	4SP14-18A	8T/103	14T/72	16T/58	5.5
50	4SP14-21A	8T/119	14T/84	16T/67	7.5
51	4SP14-25A	8T/143	14T/100	16T/80	7.5

序號	規格型號	流量 m³/揚程 h				功率kw
1	6SP17-1	10T/9.7	15T/8.7	17T/8.2	20T/7	0.75*
2	6SP17-2	10T/19	15T/17	17T/16	20T/14	1.1*
3	6SP17-4	10T/39	15T/35	17T/33	20T/28	2.2*
4	6SP17-5	10T/48	15T/43	17T/41	20T/35	3*
5	6SP17-7	10T/68	15T/61	17T/57	20T/49	4*
6	6SP17-9	10T/88	15T/79	17T/74	20T/63	5.5*
7	6SP17-12	10T/117	15T/105	17T/99	20T/84	7.5
8	6SP17-15	10T/146	15T/131	17T/124	20T/105	9.2
9	6SP17-18	10T/175	15T/157	17T/148	20T/126	11
10	6SP17-21	10T/205	15T/184	17T/173	20T/147	13
11	6SP17-24	10T/234	15T/210	17T/198	20T/168	15
12	6SP17-30	10T/292	15T/262	17T/247	20T/210	18.5
13	6SP17-36	10T/351	15T/315	17T/297	20T/252	22
14	6SP17-43	10T/419	15T/376	17T/355	20T/301	26
15	6SP30-1	25T/9.4	30T/7.8	35T/6		1.1*
16	6SP30-2	25T/19	30T/16	35T/12		2.2*
17	6SP30-3	25T/28	30T/24	35T/18		3*
18	6SP30-4	25T/38	30T/31	35T/24		4*
19	6SP30-5	25T/47	30T/39	35T/30		5.5*
20	6SP30-7	25T/66	30T/55	35T/42		7.5
21	6SP30-9	25T/85	30T/71	35T/54		9.2
22	6SP30-12	25T/113	30T/94	35T/72		11
23	6SP30-14	25T/132	30T/110	35T/84		13
24	6SP30-16	25T/151	30T/126	35T/96		15
25	6SP30-19	25T/179	30T/150	35T/114		18.5
26	6SP30-23	25T/217	30T/181	35T/138		22
27	6SP30-28	25T/264	30T/221	35T/168		26
28	6SP30-29	25T/273	30T/229	35T/174		30
29	6SP46-1	40T/9.6	46T/8.8	50T/8		2.2*
30	6SP46-2	40T/19	46T/17	50T/16		3*
31	6SP46-3	40T/28	46T/26	50T/24		5.5*
32	6SP46-4	40T/38	46T/35	50T/32		7.5
33	6SP46-5	40T/48	46T/44	50T/40		7.5
34	6SP46-6	40T/58	46T/53	50T/48		9.2
35	6SP46-7	40T/67	46T/62	50T/56		11
36	6SP46-8	40T/77	46T/70	50T/64		13
37	6SP46-10	40T/96	46T/88	50T/80		15
38	6SP46-12	40T/115	46T/106	50T/96		18.5
39	6SP46-14	40T/134	46T/123	50T/112		22
40	6SP46-16	40T/154	46T/141	50T/128		26
41	6SP46-18	40T/173	46T/158	50T/144		30
42	6SP46-19	40T/183	46T/167	50T/152		30
43	6SP46-20	40T/193	46T/176	50T/160		30
44	6SP46-21	40T/202	46T/185	50T/168		37
45	6SP46-22	40T/212	46T/194	50T/176		37
46	6SP60-1	50T/9	60T/7.8	65T/7		2.2*
47	6SP60-2	50T/18	60T/16	65T/14		4*
48	6SP60-3	50T/27	60T/24	65T/21		5.5*
49	6SP60-4	50T/36	60T/31	65T/28		7.5
50	6SP60-5	50T/45	60T/39	65T/34		9.2
51	6SP60-6	50T/54	60T/46	65T/41		11
52	6SP60-8	50T/72	60T/62	65T/55		15
53	6SP60-9	50T/81	60T/70	65T/62		18.5
54	6SP60-10	50T/90	60T/78	65T/69		18.5
55	6SP60-11	50T/100	60T/86	65T/76		22
56	6SP60-12	50T/110	60T/94	65T/83		22
57	6SP60-13	50T/118	60T/102	65T/90		26
58	6SP60-14	50T/128	60T/110	65T/97		26
59	6SP60-15	50T/135	60T/117	65T/104		26
60	6SP60-16	50T/145	60T/125	65T/111		30
61	6SP60-17	50T/154	60T/132	65T/118		30
62	6SP60-18	50T/163	60T/140	65T/125		30
63	6SP60-19	50T/172	60T/148	65T/133		37
64	6SP60-20	50T/181	60T/156	65T/140		37
65	6SP60-21	50T/190	60T/164	65T/146		37

序號	規格型號	流量 m³/揚程 h					功率kw
序號	規格型號	50m³	60m³	70m³	77m³	90m³	功率kw
1	8SP77-1	16	15	14	13	10	5.5*
2	8SP77-2	31	30	28	27	21	7.5*
3	8SP77-3	47	44	42	40	31	11*
4	8SP77-4	63	59	56	53	42	15*
5	8SP77-5	78	74	70	67	52	18.5
6	8SP77-6	94	89	84	80	63	22
7	8SP77-7	110	104	98	93	73	26
8	8SP77-8	125	119	112	107	84	30
9	8SP77-10	157	148	140	133	105	37
10	8SP77-12	188	178	168	160	126	45
11	8SP77-15	235	222	210	200	157	55
12	8SP77-16	250	237	224	213	168	63
13	8SP77-17	266	252	238	227	178	63
14	10SP77-18	282	267	252	240	189	75
15	10SP77-19	297	282	266	253	200	75
16	10SP77-20	313	297	280	267	210	75
序號	規格型號	流量 m³/揚程 h					功率kw
序號	規格型號	80m³	90m³	95m³	100m³	110m³	功率kw
17	8SP95-1	14	13	12	11	9	5.5*
18	8SP95-2	28	25	24	22	18	9.2*
19	8SP95-3	41	38	36	33	28	13*
20	8SP95-4	55	50	48	45	37	18.5
21	8SP95-5	69	63	60	56	46	22
22	8SP95-6	83	76	72	67	55	26
23	8SP95-8	110	100	96	89	73	37
24	8SP95-10	137	125	120	112	92	45
25	8SP95-11	152	139	132	123	101	55
26	8SP95-12	165	151	144	135	111	55
27	8SP95-14	193	176	168	157	129	63
28	10SP95-16	220	199	193	179	147	75
29	10SP95-18	250	230	215	200	165	90
30	10SP95-20	276	252	240	224	184	90
序號	規格型號	流量 m³/揚程 h					功率kw
序號	規格型號	80m³	100m³	125m³	140m³	160m³	功率kw
1	10SP125-1	24	22	20	17	13	11
2	10SP125-2	49	45	40	35	26	22
3	10SP125-3	74	67	60	53	40	30
4	10SP125-4	98	91	80	70	52	37
5	10SP125-5	127	118	100	95	62	55
6	10SP125-6	142	130	120	100	75	63
7	10SP125-7	165	152	140	115	89	75
8	10SP125-8	189	172	160	132	100	90
9	10SP125-9	214	195	180	150	112	90
10	10SP125-10	240	220	200	170	130	110
序號	規格型號	流量 m³/揚程 h					功率kw
序號	規格型號	0m³	100m³	120m³	160m³	180m³	功率kw
1	10SP160-1	33	25	23	20	18	13
2	10SP160-2	65	50	46	40	36	26
3	10SP160-3	99	75	69	60	52	37
4	10SP160-4	132	100	92	80	72	55
5	10SP160-5	160	135	115	100	90	63
6	10SP160-6	198	150	138	120	108	75
7	10SP160-7	231	175	161	140	136	90
8	10SP160-8	264	200	183	160	144	90
9	10SP160-9	297	225	205	180	162	110
